Sample Fixture for Measurements on Air-sensitive Solids at Elevated Temperatures

BDS1312

BDS 1312 main body

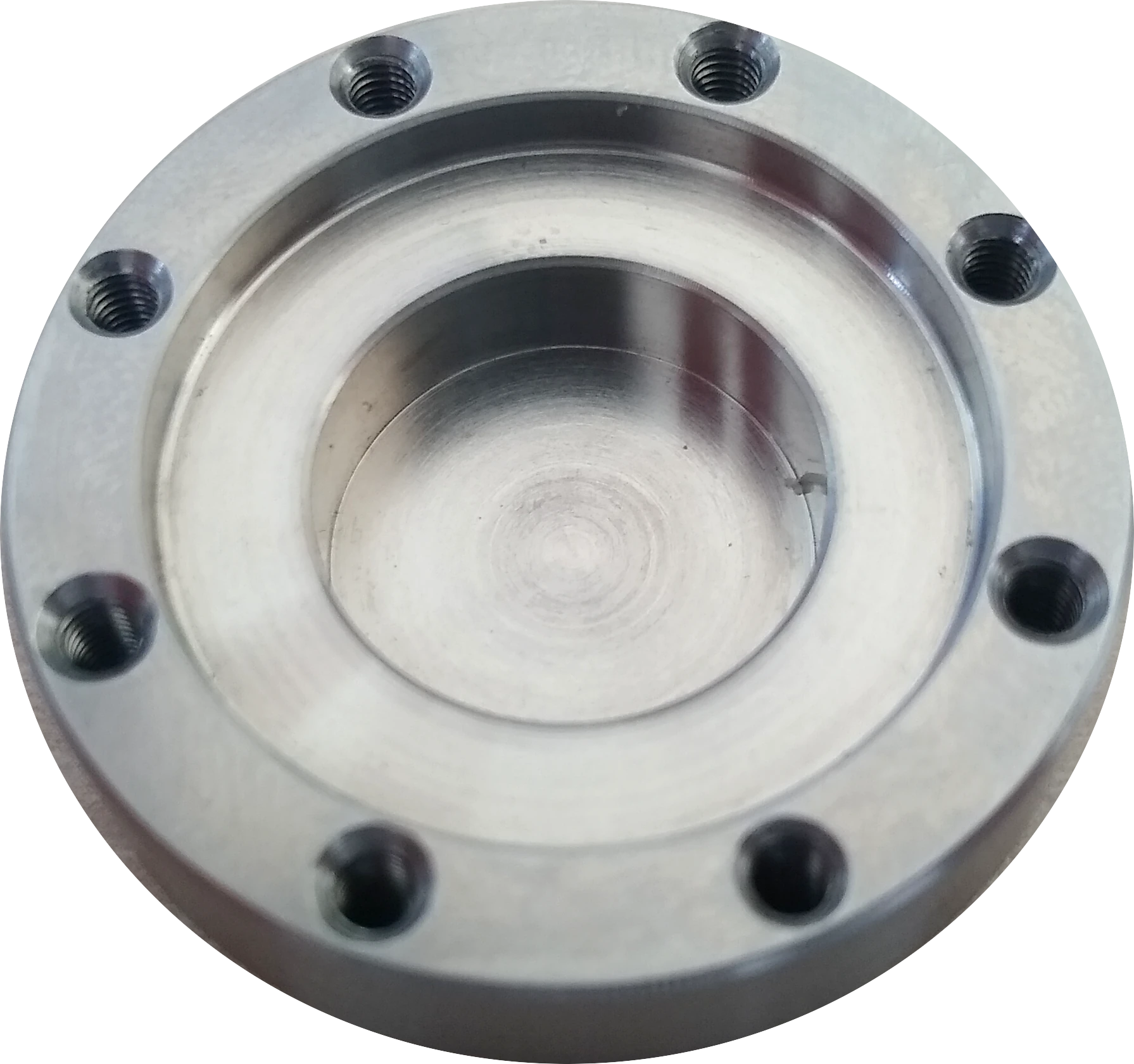

BDS 1312 cell base with lower electrode

The BDS 1312 is a sealable sample fixture designed for dynamics conductivity measurements of solid materials at elevated temperatures, i.e., up to 400 °C. The BDS 1312 is designed for being mounted into the Novocontrol Dielectric Sample Cells, BDS 1200 and ZGS.

Parts

The fixture comes with the following parts:
  1. Cell base (stainless steel). Diameter: 40 mm OD, Sample opening (ID): 19 mm
  2. Spring ring internal for contacting
  3. Two pairs of sample electrodes for 6 mm and 12 mm OD samples, respectively
  4. Top lid (quartz with top electrode (stainless steel, sealed with gold wire)
  5. Steel fixing ring (eight holes for screws)
  6. Eight screws, 2.5 mm hexagonal
