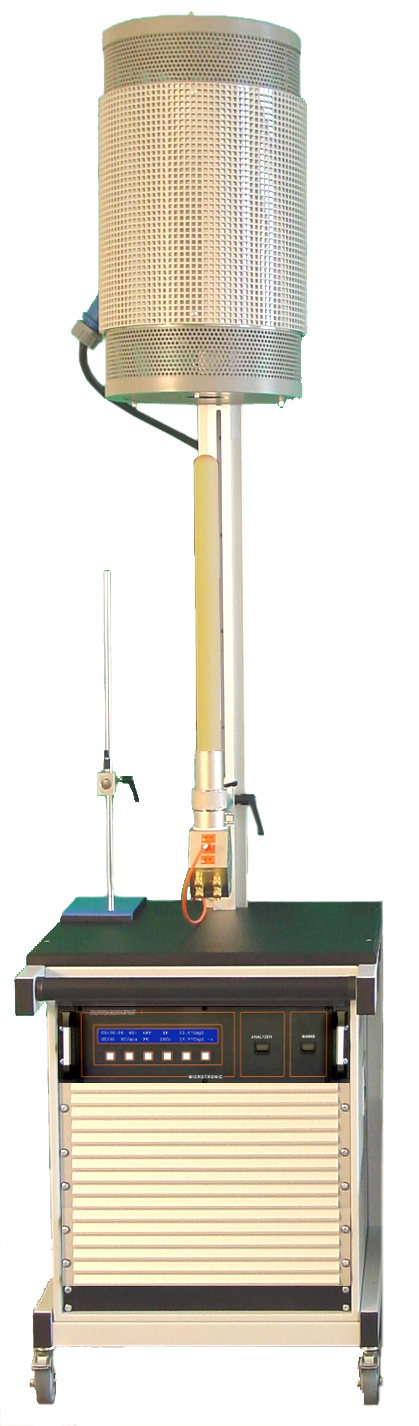

Novotherm-HT High Temperature Control System

Performance Example

The green line represents the temperature setpoint which is stepped in several intervals of a typical experiment from 200 °C to 1600 °C and back to 200 °C. The red line shows the sample temperature (process value).

As can be seen, temperature stabilization is very accurate without any visible overshooting and fast. Typical stabilization times vary depending on the target temperature.

After each stabilization, a dielectric or impedance measurement sweep is started. After sweep completion the subsequent temperature setpoint is set.
