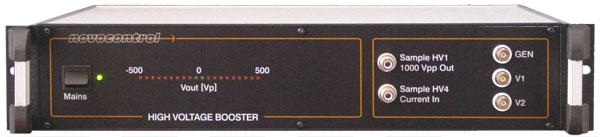

HVB1000
High Voltage Test Interface for Dielectric, Conductivity and Impedance Two-Electrode Measurements for the Alpha-A Modular Measurement System
The HVB 1000 extension test interface for the Alpha-A modular measurement system features dielectric, conductivity, impedance 2 electrode spectroscopy at dc and / or ac voltages up to ±500 Vp.
Like all Alpha-A test interfaces, HVB 1000 has high general purpose performance but is optimized for for broadband high voltage measurements of low-loss dielectrics.
HVB 1000 is especially recommended for dielectrics, semiconductors or electronic components at high AC and / or DC voltages for
-
non-linear dielectric / impedance spectroscopy;
-
characterization of materials or components under stress;
-
extreme high impedance samples exceeding 1014 Ω.
For material measurements, operation with the Novocontrol High Voltage Sample Cell is recommended.
Additional Information
Alpha-A modular measurement system
Test Interfaces overview including basic concepts and application examples (173 kb PDF)
| HVB1000 Short Specification | |
| Ranges | |
| Frequency | 3 µHz ... 10 kHz (9.5 decades) |
| Impedance | 100 Ω .. 1015 Ω (13 decades) |
| Capacitance | 1 fF ... 0.1 F (14 decades) |
| Loss factor tan(δ) |
10-5 .. 104 |
| AC signal out | 20 mV .. 353 Vrms, 3.3 mA max |
| DC bias out | -500 VDC .. +500 VDC, 3.3 mA max ** |
| Signal
generator output impedance |
150 kΩ |
| Voltage in | < ± 500 Vp dc coupled |
| Basic Accuracy | |
|
Relative Impedance, |
< 3.10-5
*** |
| Phase Angle | < 2 m° *** |
| Resolution | |
|
Relative Impedance, |
< 10-5 |
| Phase Angle | < 0.6 m° |
| User Calibrations | open, internal self calibration and diagnostics |
** requires dc bias option B of the Alpha-A mainframe,
ac + dc voltage peak amplitude must not exceed
500 V.
*** for details refer to specification charts
