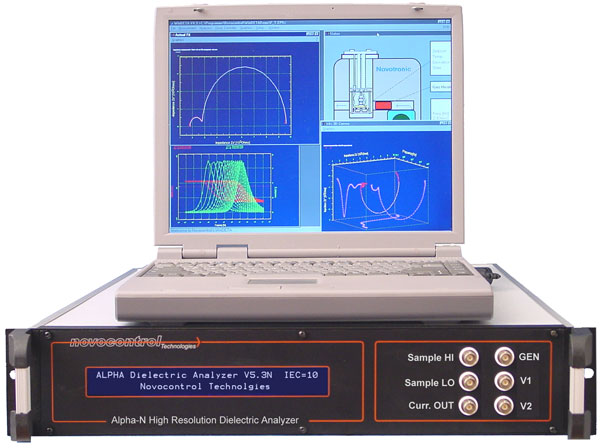

Alpha Single Unit Analyzer







Beta Single Unit Analyzer



for Dielectric, Conductivity and Impedance Spectroscopy and Gain Phase Measurements



The Alpha analyzer features high quality general purpose dielectric, conductivity, impedance 2 electrode spectroscopy and gain phase measurements.

The Beta analyzer has the same functionality, but supports 3 and 4 electrode configurations in addition.

Both analyzers combine a high class precision broadband dielectric material characterization system with a typical impedance analyzer for the low and middle impedance range. This combination makes them unique and easy to use instruments with exceptional overall performance.

The Beta and Alpha analyzers cover 16 orders of magnitude impedance range, 12,5 orders of magnitude frequency range and 1m° basic phase accuracy in a single instrument. This combination makes them powerful tools for electric analysis instrumentation. As a result, the analyzers can measure the permittivity, conductivity and impedance of nearly all materials or components broadband and over a wide temperature range without changing sample geometry or sample cells.

3 or 4 electrode techniques can be advantageously used in order to partly compensate electrode - sample interface polarization or contact impedance effects.
The Beta analyzer voltage channel input impedance is 1012Ω | 10 pF which exceeds the range of most competing instruments by several orders of magnitude and therefore can be seen as a major improvement in broadband 3 and 4 electrode measurements.



The Beta and Alpha analyzers are predecessors and  economical alternatives to the more powerful and flexible modular Alpha-A series, which can be extended by a series of test interfaces, which is not possible for the Beta and Alpha series. A more detailed comparison of the three series can be found here.



Applications

Comparison to Alpha-A series



Basic concepts including principles of operation, measurement and application examples (252 kb PDF)

Specification charts (70 kb PDF)

Alpha brochure (PDF)

Beta brochure (PDF)

 Features




Alpha + Beta Short Specification
Ranges
   Frequency  3 µHz ... 40 MHz (13.1 decades)
   Impedance 0.01 Ω .. 1014 Ω (16 decades)
   Capacitance   1 fF ... 1 F (15 decades)
   Loss factor tan(δ)

10-5 .. 104

   AC signal out 100 µV .. 3 Vrms
   DC bias out -40 VDC .. +40 VDC,
70 mA max **
   Signal generator output
   impedance
50 Ω
   Voltage in < ± 4.3 Vp dc or ac coupled
Differential Voltage Inputs (Beta only)
   Input impedance 1012 Ω | 10 pF
   Common Mode
   Rejection
< 10-4 below 100 kHz
< 10-3 dB below 1 MHz
   Input Bias Current < 2.10-12 A
Basic Accuracy

   Relative Impedance,
   Relative Capacity,
   Loss factor tan(δ)

< 3.10-5 ***
   Phase Angle < 2 m° ***
Resolution

   Relative Impedance,
   Relative Capacity,
   Loss factor tan(δ)

< 10-5
   Phase Angle < 0.6 m°
User Calibrations load, short, open, internal self calibration and diagnostics
Interface  GPIB / IEEE488
Software   WinDETA data acquisition software with online graphics

   * in combination with the types Alpha-N, Alpha-T or Beta-N, Beta-T
 ** requires dc bias option B
*** for details refer to specification charts



Alpha and Beta Analyzer Types
The following types with different frequency ranges are available.

Upper frequency limit

Type Code

40 MHz Alpha-T or Beta-T
20 MHz Alpha-N or Beta-N
3 MHz Alpha-K or Beta-K
0.3 MHz Alpha-L or Beta-L

Alpha and Beta Analyzer Options
The following mainframe options are available.

Option

Additional Type Code Letter

Dc bias ±40V, 70mA

B if installed, missing else



Note: The recommended types with best performance / price ratio are the Alpha-NB or Beta-NB (20 MHz with dc bias).
