| Order-No. |
Description |
| BDS 1100 |
|
| BDS 1200 |

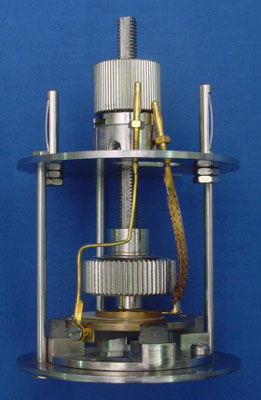

| connection head with standard sample
cell for low conductivity materials
Details
|
 |
|
| BDS 1230 |
|
| BDS 1301 |
|
| BDS 1302 |
|
| BDS 1303 |

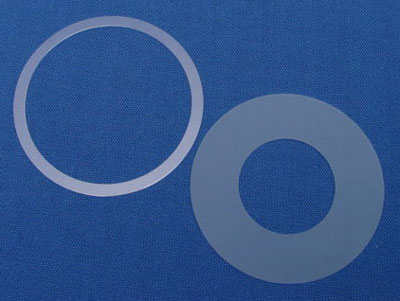

fused silica spacer ring; thickness:
200 µm ± 1µm
40/35 mm, 40/20 mm (outer/inner diam.) |
 |
|
| BDS 1304 |
| set of a few hundred fused silica
spacer fibres, thickness: 50 µm ± 1 µm, area approx. (1
.. 2) mm2 |
 |
|
| BDS 1305 |
| evaporation mask fitting on 40 mm
electrodes, inner diam. = 30, 20, 10, or 6mm |
 |
|
| BDS 1306 |
| flat mask to evaporate
self-supporting films on both sides, diam. = 40, 30, 20, or 10
mm |
|
|
| BDS 1308 |
| teflon sample cell for liquids of
medium conductivity
Details
|
 |
|
| BDS 1310 |
gas heating module fitting the
cryostat BDS 1100
42V/15A complete with 120 cm long flexible nitrogen
transfer line
part of the Quatro Cryosystem
|
 |
|
| BDS 1320 |
| pressurizer module for liquid nitrogen
42V/15A, |
| 0 - 250 mbar, including pressure
transducer |
| l = 600 mm for 50 l dewar |
| l = 900 mm for 100 l dewar |
| l = 900 mm for 150 l dewar
part of the Quatro
Cryosystem
|
|
 |
|
| BDS 1330 |
| quatro system controller for dewar
temp., dewar pressure, gas temp. and sample temp.., including
cascade and alarm functions, data interface: IEEE488
part of the Quatro Cryosystem
|
|
|
| BDS 1340 |
| stabilized pulsed power supply 2 * 0
- 42V/15A max. for gas and dewar heaters including LED bar level
indicators for output power, switches and power plugs for line
power supply of analyzer, Quatro system controller and vacuum
system.
part of the Quatro Cryosystem |
 |
|
| BDS 1350 |
| vacuum pump with vacuum gauge,
flexible metal tubing and connections to the gas heating module
and the cryostat
part of the Quatro Cryosystem
|
 |
|
| BDS 1410 |
Interdigit Electrode, gold-plated high-quality
version.
Available in different diameters (15 mm/20 mm) and spacings (75 µm/150
µm). For ordering, please specify BDS 1410-<diameter/mm>-<spacing/µm>,
e.g., BDS 1410-15-75 for 15 mm diameter and 75 µm
spacing. Currently available:
- BDS 1410-15-75
- BDS 1410-15-150
- BDS 1410-20-150
Other dimensions upon request.
|
 |
|
| BDS 1411 |
Interdigit Electrode, economical version for
one-time use, routine measurements, quality control.
Available in different diameters (15 mm/20 mm). Spacing 150 µm.
For ordering, please specify BDS 1411-<diameter/mm>-<spacing/µm>,
e.g., BDS 1411-20-150 for 20 mm diameter and 150 µm
spacing. Currently available:
- BDS 1411-15-150
- BDS 1411-20-150
Other dimensions upon request.
|
|
|
| BDS 1500 |
|
| Dewar |
120 litre dewar on wheels,
including level indicator.
200 litre version available
upon special request
part of the Quatro- and Novocool
Cryosystems
|
 |
|
Data
Acquisition
Unit |

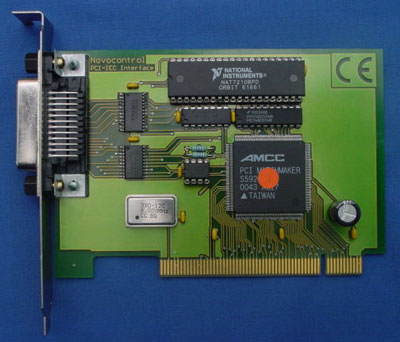

| includes computer with Microsoft
Windows, 19'' monitor, laser printer and GPIB PCI card BDS1500
for instrument communication.
part of all BDS
and Concept Systems
Note: Computer table not included.
|
 |
|
